$7,695.00
All Road or Endurance, call it what you want. The Fray is for riders who want speed, versatility, and max performance – infused with a World Tour pedigree and a call for exploration.

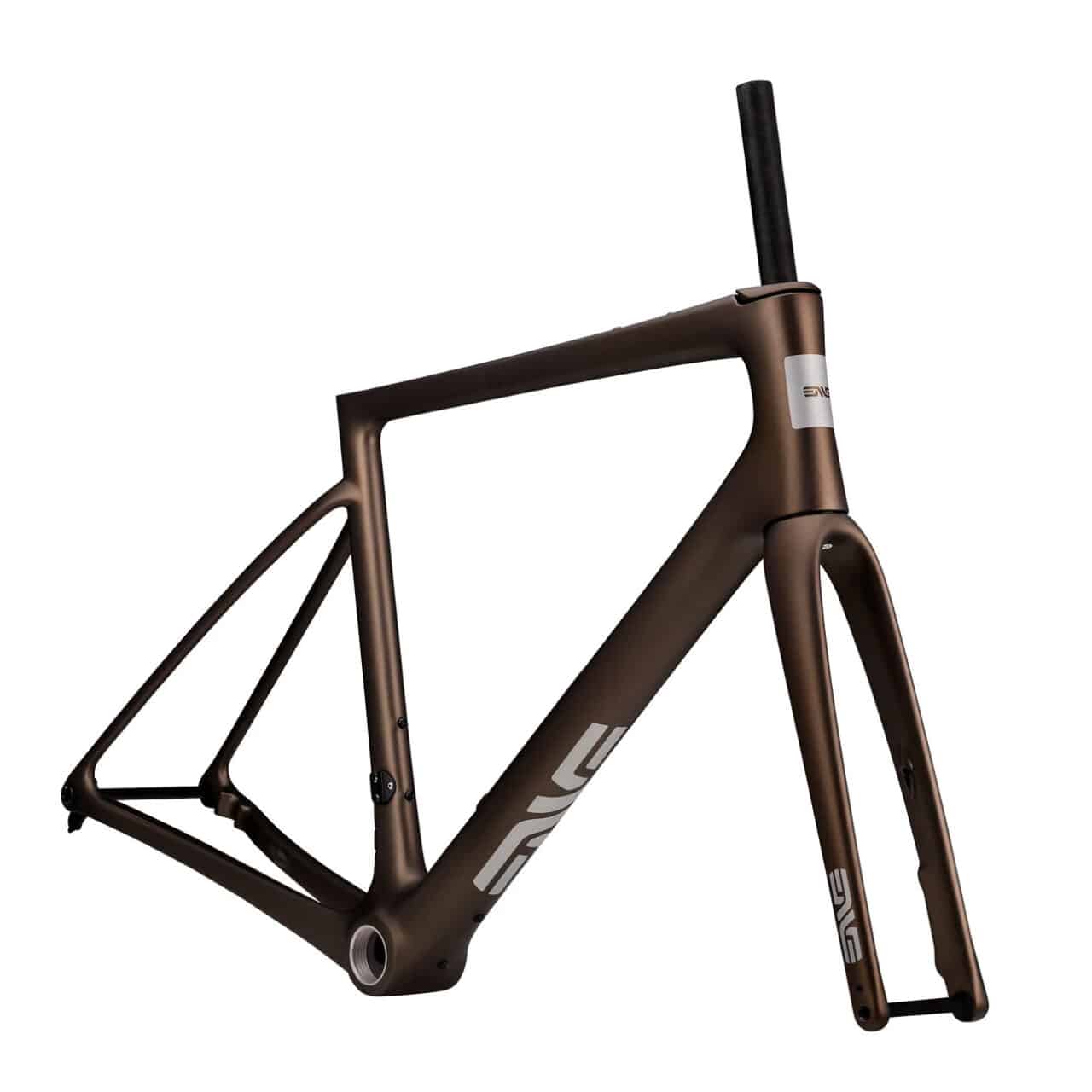

An ENVE Fray Chassis is the canvas upon which you can build your dream bike. The Fray is sold as a chassis-only which includes the frame, fork, headset, stem, handlebar, and seatpost. We've included representative pricing for various build options and invite you to reach out to us to initiate your custom setup. We'll begin by selecting your frame size, stem length, handlebar width, and seatpost setback. We can assist with all sizing related questions.
Developed in CFD and the wind tunnel, the Fray features refined tube shapes that have been tuned to complement ENVE SES™ rim shapes and deliver aerodynamic performance that is Real-World Fast™. Additional features such as the IN-Route System add to the Fray's slippery design.
The Integrated Front-End routes wires and hoses through the bar, stem, and headset where they’re secured using ENVE’s anti-rattle frame finishing kit. This allows internally routed hoses and wires to remain silent, out of sight, and out of the wind. Featuring the IN-Route Aero Stem and your choice of IN-Route handlebar, the Fray capitalizes on the conveniences of a two-piece handlebar and stem while maximizing the aerodynamic benefits of the streamlined design.

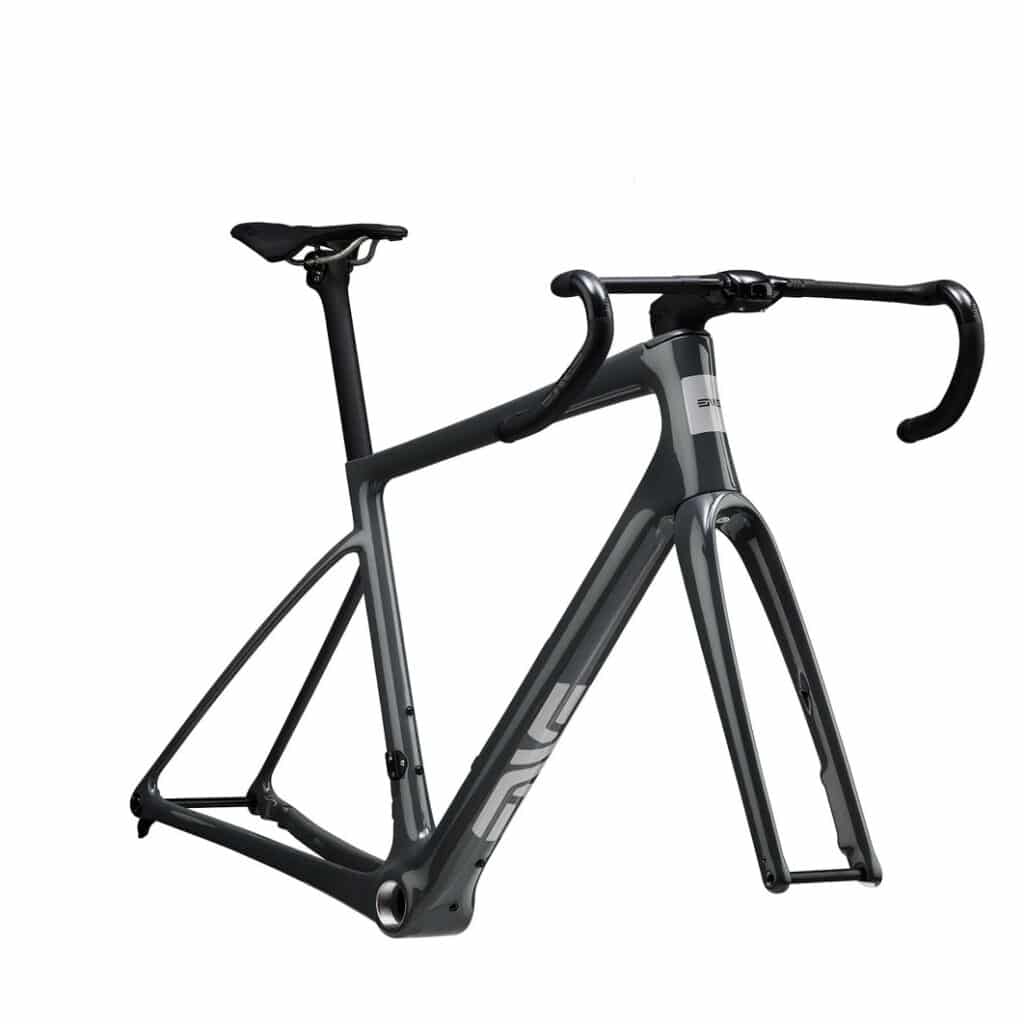

An ENVE Chassis is the canvas upon which you can build your dream bike. The Fray is sold as a chassis-only which includes the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, begin by selecting your frame size, stem length, handlebar width, and seatpost setback. We're here to support with sizing considerations. From there, pair it with your drivetrain of choice and your favorite SES or Foundation wheelset.
The ENVE IN-Route System routes wires and hoses through the bar, stem, and headset, where they’re secured using ENVE’s anti-rattle finishing kit – allowing them to remain silent, out of sight, and out of the wind.
The Fray features an aero seatpost with a Kamm tail design and ENVE's patented twin-bolt saddle rail clamp design. Available in straight or 20 mm setback and compatible with 7x7, 7x9, and 7x10 mm saddle rails.
ENVE designs and builds to the strengths of carbon fiber. This means running continuous fibers throughout the frame and fork, tapering the laminate, and removing excess material to save weight. Carbon fiber is layered and oriented to achieve zone-specific performance requirements like impact toughness, stiffness and compliance. M.O.D. is giving you everything you need, and nothing that you don’t to perform when the rubber hits the road.
The Fray geometry is optimized around 31 to 35mm tires, though it can fit up to 40mm. Combined with progressive endurance geometry and the ENVE Cargo Bay for in-frame downtube storage, the Fray brings road race performance to those seeking a wider range of surfaces and terrain.
Featuring a threaded T47 inboard-bearing bottom bracket for smooth, silent, creak-free operation. Your bottom bracket is the last thing you should have to think about.
Borrowing from the MOG, the Fray also features ENVE’s Cargo Bay, an integrated downtube storage solution that makes efficient use of unused space for stashing your flat tire repair kit, windbreaker, or anything else you choose to carry. Under the Cargo Door, two Cargo Bags allow for 36 cubic inches/0.6 liters of storage. It’s a fast and simple storage solution that can be appreciated by racers and adventurers alike.
The top tube accessory mount allows you to keep food and nutrition close at hand.
The down tube mount conveniently stores an extra water bottle, tool kit, or pack to help ensure adequate storage on longer rides or multi-day adventures.
| 47 | 50 | 52 | 54 | 56 | 58 | 60 | |
|---|---|---|---|---|---|---|---|
| Reach | 365 | 371 | 377 | 383 | 389 | 396 | 403 |
| Stack | 522 | 540 | 556 | 573 | 591 | 610 | 633 |
| Top Tube | 510 | 524 | 539 | 552 | 565 | 581 | 599 |
| Fork Rake | 55 | 55 | 51 | 51 | 47 | 47 | 43 |
| Seat Tube Length (C to T) | 426 | 445 | 465 | 480 | 502 | 519 | 529 |
| Max Saddle Rail Height (w/350mm seatpost) | 701 | 720 | 740 | 755 | 777 | 794 | 804 |
| Seat Tube Angle | 75 | 74.5 | 74 | 73.75 | 73.5 | 73.2 | 72.75 |
| Head Tube Angle | 70.9 | 71.3 | 72 | 72 | 72.6 | 72.6 | 73.3 |
| Head Tube Length | 107 | 125 | 137 | 157 | 172 | 194 | 215 |
| BB Drop | 78 | 78 | 78 | 76 | 76 | 74 | 74 |
| Chainstay Length | 415 | 415 | 415 | 415 | 415 | 417 | 420 |
| Wheel Base | 985 | 994 | 994 | 1006 | 1008 | 1024 | 1029 |
| Front Centre | 577 | 586 | 586 | 598 | 600 | 613 | 616 |
| Standover | 699 | 718 | 738 | 756 | 777 | 797 | 824 |
| BB Height (31 mm tire) | 264 | 264 | 264 | 266 | 266 | 268 | 268 |
| Trail (29 mm tire) | 60.2 | 58 | 57.5 | 57.5 | 57.9 | 57.9 | 57.7 |
| Trail (31 mm tire) | 61.1 | 58.9 | 58.3 | 58.3 | 58.7 | 58.7 | 58.5 |
| Trail (33 mm tire) | 62 | 59.7 | 59.1 | 59.1 | 59.5 | 59.5 | 59.2 |
| Trail (35 mm tire) | 62.8 | 60.6 | 59.9 | 59.9 | 60.3 | 60.3 | 60 |
The Fray chassis is the canvas upon which you can create your dream bike. Choose your favorite SES or Foundation wheelset, Handlebar, IN-Route Stem, and Aero Seatpost to achieve your perfect setup.
Representative pricing reflects specs listed, but are fully customizable and we can work with various budgets.
