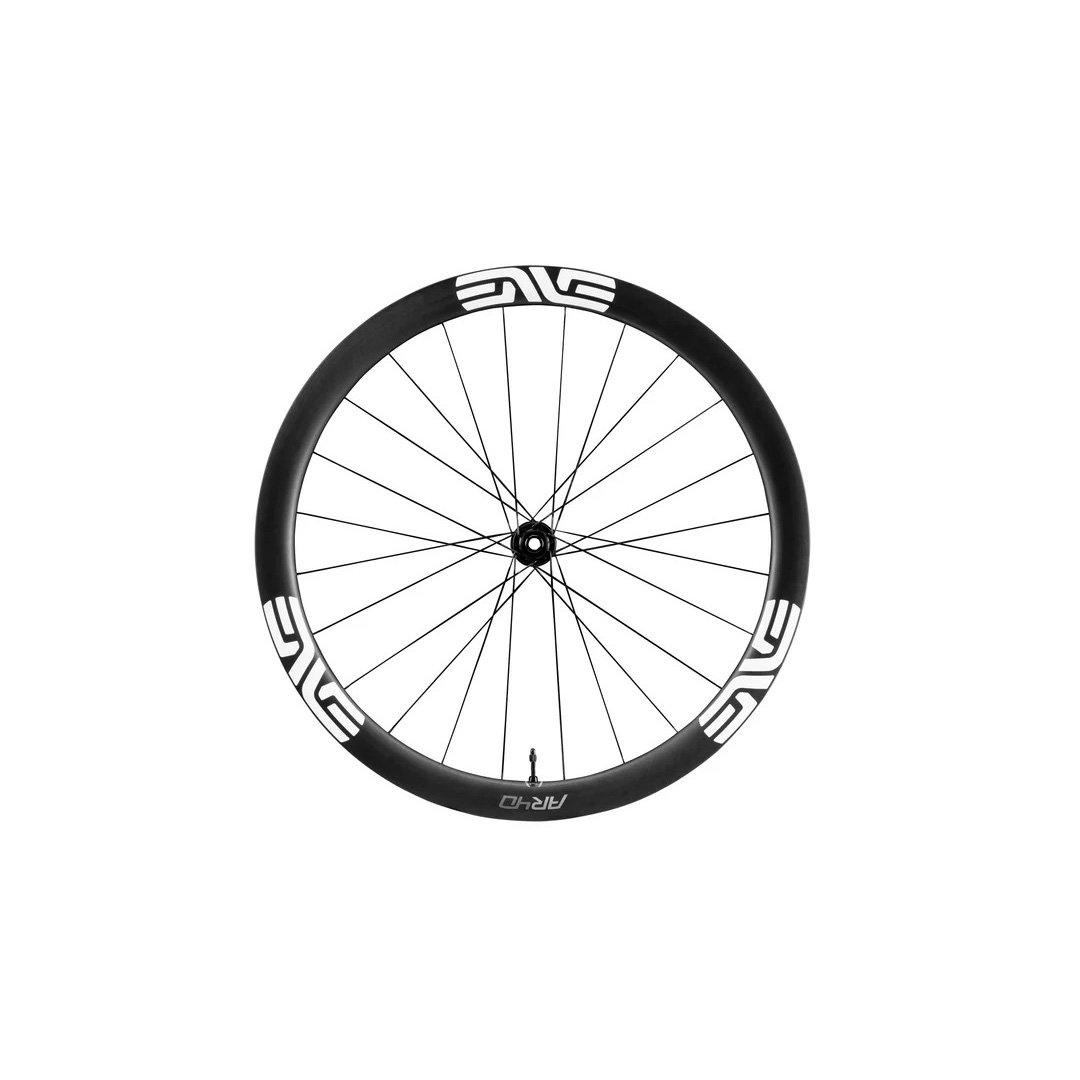

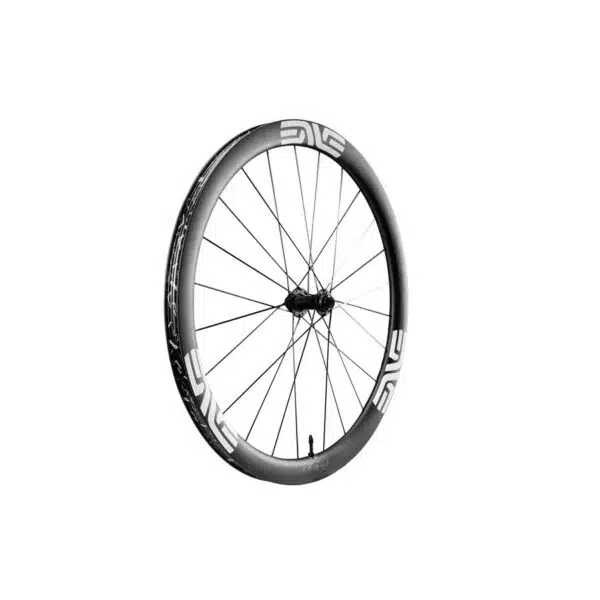

ENVE AR40 Wheelset

Q: Is the ENVE AR40 hookless and tubeless-only?

Yes. ENVE specifies the AR40 as hookless/straight-sidewall and for use with tubeless tires only.

Q: What tire sizes are supported?

ENVE lists a recommended tire size of 27–50mm and a minimum of 27mm. The tire must be tubeless and appear on ENVE’s approved/recommended compatibility list.

Q: What are the rim dimensions?

The AR40 uses a 40mm deep rim with 25mm internal width.

Q: What’s the wheelset weight?

ENVE lists 1515g wheelset weight (average, ±3%) including tape and valves (HG freehub reference). Individual wheel weights are 690g front and 825g rear.

Q: What hubs, spoke count, and brake interface does it use?

ENVE INNERDRIVE Foundation hubs with Sapim CX-Ray J-bend spokes in a 24h build. Brake interface is Center Lock; spacing is 12×100 front and 12×142 rear.

$1,999.99

Driver Body: No selection

Clear

Product Highlights

ENVE AR40 Wheelset (front + rear) from the Foundation lineup: a 40mm deep, 25mm internal hookless, tubeless-only carbon wheelset built for fast road and mixed-surface riding.

Rims: 40mm depth, 25mm internal, Wide Hookless Bead (pinch-flat/impact protection)
Hubs/Build: ENVE INNERDRIVE Foundation hubs, Sapim CX-Ray J-bend spokes, 24h, Center Lock
Axle: 12×100 (front) / 12×142 (rear)
Weight: 1515g wheelset (avg, includes tape & valves; HG freehub)
Tires: recommended 27–50mm; minimum 27mm tubeless (approved list); max 80 psi / 5.5 bar for 27mm

Frequently Asked Questions

Is the ENVE AR40 hookless and tubeless-only?

Yes. ENVE specifies the AR40 as hookless/straight-sidewall and for use with tubeless tires only.

What tire sizes are supported?

ENVE lists a recommended tire size of 27–50mm and a minimum of 27mm. The tire must be tubeless and appear on ENVE’s approved/recommended compatibility list.

What are the rim dimensions?

The AR40 uses a 40mm deep rim with 25mm internal width.

What’s the wheelset weight?

ENVE lists 1515g wheelset weight (average, ±3%) including tape and valves (HG freehub reference). Individual wheel weights are 690g front and 825g rear.

What hubs, spoke count, and brake interface does it use?

ENVE INNERDRIVE Foundation hubs with Sapim CX-Ray J-bend spokes in a 24h build. Brake interface is Center Lock; spacing is 12×100 front and 12×142 rear.

Free Shipping $100+

Free shipping on all orders over $100 (before tax)
All orders are processed within 1 business day
Orders ship from our warehouse in Guelph, ON
Free shipping ranges from 2-6 business days depending on location within Canada
Expedited shipping options (which ranges from 1-3 business days) are available at checkout upon entering your shipping address
We ship with most major couriers, including Canada Post, UPS, Fedex, Purolator, Canpar, and ICS
Full shipping details can be found in our shipping policy

Returns & Exchanges

If your NOMAD purchase isn't quite right for you, you may return it for a refund within 30 days from delivery
Return items must be unused and accompanied by all original packaging, with both product and packaging in an undamaged state and all product tags intact
Refunds will be issued to your original form of payment within 2-5 business days of receipt of items at our distribution centre
We cannot accept returns or exchanges of the following items:
- Nutrition products
- Gift cards
- Water bottles
- Personal care items, such as body creams and lotions
- Items marked as clearance or final sale
Return shipping fees are the responsibility of the customer
Full return details can be found in our return policy

Overview

The ENVE AR40 is a modern “all-road” carbon wheelset that sits at the sweet spot for everyday speed: deep enough to deliver meaningful aero efficiency, wide enough to support today’s bigger road tires, and tough enough for rougher pavement and light off-road detours. ENVE positions the AR40 as the newest Foundation option, pairing a 40mm aerodynamic rim depth with a wide 25mm internal profile for versatility across road riding, racing, and mixed surfaces.

Rim profile, hookless bead and tubeless intent

The ENVE AR40 uses a hookless/straight-sidewall rim profile and is specified for tubeless tires only. ENVE’s “Wide Hookless Bead” is designed to help dissipate impact energy at the rim edge and reduce pinch-flat risk from potholes and sharp hits. Tire guidance is published by ENVE: the wheel is optimized around larger modern road tires, with an official recommended range of 27–50mm and a minimum 27mm tubeless tire that must appear on ENVE’s approved/recommended tire list. ENVE also notes the AR40 is designed for tubeless tires greater than 28mm wide, so most riders will land in the 28–32mm (and beyond) sweet spot for real-world speed and comfort.

Build, hubs and brake interface

Each wheel is built with Sapim CX-Ray J-bend spokes (24h) and brass locking nipples, laced to ENVE INNERDRIVE Foundation hubs. The wheelset is disc-brake only with a Center Lock interface, and uses modern road thru-axle standards: 12×100 front and 12×142 rear.

Weights and setup details

ENVE lists a wheelset weight of 1515g (average, ±3%) and provides individual wheel weights of 690g front and 825g rear, with the wheelset figure including tape and valves on an HG freehub configuration. Tubeless setup details are also published: 29mm tape width and 61mm valve length. For the minimum 27mm tire, ENVE lists a maximum pressure of 80 psi / 5.5 bar (larger tires use lower working pressures in practice).
